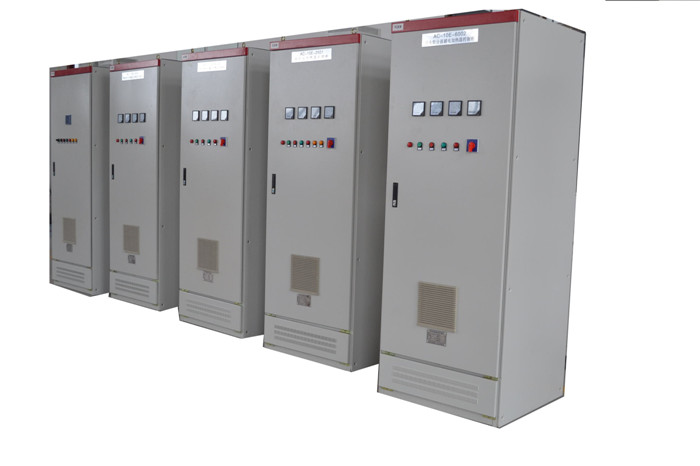

Product Name: Electric heating control cabinet
Release Date: 2015-04-22
Hits: 519
Inquiry: Click Inquiry
Two Dimensional Code:
Description:
Control Equipment:
· Circulation heaters
· Immersion heater
· Duct Heater
· Vaporizer and steam boilers
· Heat medium heater
· Electric heating system
· Customized systems and integration
· Voltage rating: 3 8 0 V / 6 9 0 V
Installation environment: indoor, outdoor, moisture proof ,and explosion proof environment
For the application of great power and precise temperature control, the control cabinet is an indispensable part of the heating system.
According to the heater installation environment, our company can produce
indoor installation, outdoor installation, suitable for all-weather operation
of moisture-proof, explosion-proof control cabinet, and can configure air
conditioning systems or built-in antifreeze heater. According to the complexity
of the control system and Customer's communication requirements, control cabinet can be customized with the
option function.
The main optional function including:
★ SCR or contactor control
★ Outlet temperature regulator PID, ON / OFF adjustment or manual adjustment
★ Temperature signal remote transfer, the temperature value remote
setting
★ Leakage protection and alarm
★ Heating element temperature, shell temperature, terminal box temperature,
outlet temperature high temperature protection and alarm.
★ SCR breakdown and high temperature alarm, control cabinet internal high
temperature alarm
★ Temperature signal loss alarm
★ Operation status signals, RS-232, RS-485 communication
★ PLC Load Management Module
★ Operating power transmitter output
★ Output low alarm
★ Current display, voltage display ,power consumption display, running time display
